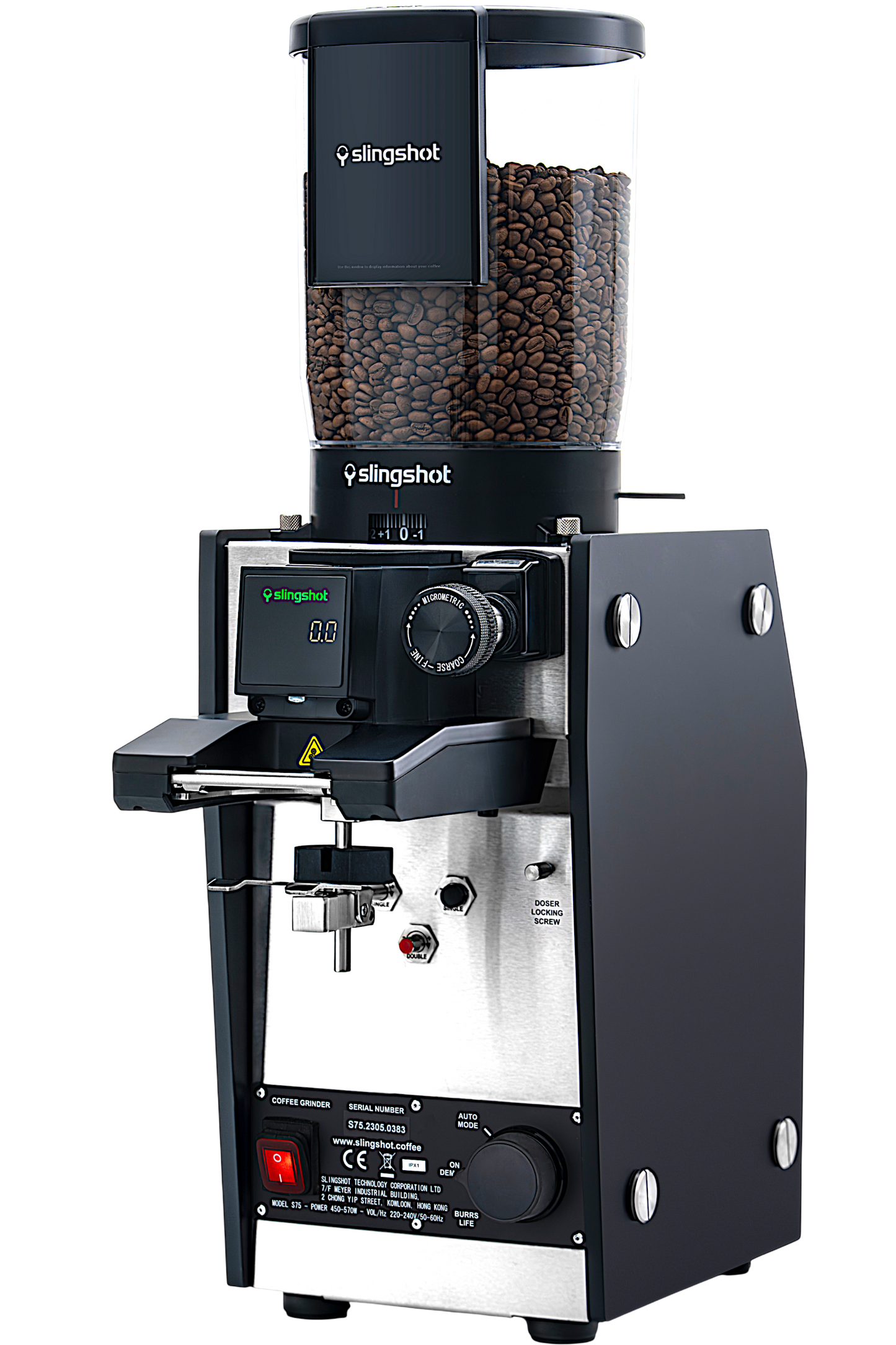

Slingshot Volumetric Grinder

Our flagship grinder deisgned with speed and efficiency in mind.
Available in three different size 64mm, 75mm flat burrs and 68mm conical burrs.
Slingshot volumetric grinders are powered by our patented self-dosing delivery system.

  • Burrs: 64mm Flat
  • Hopper Capacity: 1.2kg
  • Speed: 1280 rpm
  • Power: 220-240v 380/460W
  • Weight: 19.5 Kg
  • Performance: 7-8 sec for 20gr dose
  • Burrs: 75mm Flat
  • Hopper Capacity: 1.2kg
  • Speed: 900 rpm
  • Power: 220-240v 450/570W
  • Weight: 23.5 Kg
  • Performance: 5-6 sec for 20gr dose
  • Burrs: 68mm conical
  • Hopper Capacity: 1.2kg
  • Speed: 450 rpm
  • Power: 220-240v 450/570W
  • Weight: 23.5 Kg
  • Performance: 4-5 sec for 20gr dose
  • Diamond coated Burrs, available for the S75 Flat and the C68 Conical version.
  • Side panels, available in clear Glass, ABS White and Birch Wood.
  • Joining kit, for connecting two or more grinders together.
  • What's The Big Deal?

    self dosing delivery
    Self Dosing Grinder

    Our grinders feature a volumetric self-dosing chamber which is always on standby to provide the professional barista with their next shot of espresso. Single or double, the dosage will still be correct with zero coffee wasted.

    zero waste green
    Zero Waste Delivery System

    No more lost revenue due to coffee waste Slingshot features a sealed distribution chamber which accurately delivers the ground coffee to the portafilter with no loss of coffee. No more shaky hand to avoid ground coffee spill from the portafilter

    micrometric dosage adjustments
    Micrometric Dosage Adjustment

    Our grinders feature a volumetric dosage system that allow the Barista to set different coffee dosages for the single and double portafilter.

    burr life monitoring
    Burrs Life Monitoring

    Slingshot will register the total grinding time to allow the Barista to monitor when the Burrs need to be replaced. A warning icon will advise when to schedule the burrs replacement.

    coffee distribution chamber
    Mixing Chamber

    When the ground coffee is delivered in the portafilter a premix occurs in the coffee mixing chamber. Our unique delivery system improves coffee distribution and consistency.

    memory position burr
    Memory Position Burrs

    The coffee grinder chamber is accessible by removing the top burr sleeve. It will save time for the maintenance-cleaning, and the grinder will always retain its last grinder setting.

    on demand switch operation
    On Demand Switch Operation

    With this function Slingshot grinds only when you pressing a button. This function can be used for the initial calibration or to use during slow coffee service.

    micrometric grinding adjustment
    Micrometric Grinding Adjustment

    Our adjustable micrometric grinding system is a "step-less" design that allows precise control over the coffee grind. Grind setting is made by rotating a tactile control dial integrated with a digital position counter

    coffee display window
    Coffee Display Window

    Our Patent Pending free standing coffee hopper design has a built-in window for displaying general information such as origins and brand of coffee used or Cafe's name .

    cooling fan
    Cooling Fan

    Our range of grinders has an inbuilt climate system. The design is optimized to control the internal airflow and to maintain the coffee chamber at constant temperature.

    custom side panels
    Custom Side Panels

    Slinghsot has removable side panels that can be customised to match your coffee machine.
    Choose from the many available colours and materials or customise your own.

    twin grinder
    Modular Design

    Our unique modular design allows joining grinders together for improving workflow and saving space. A special joining kit will link two or more grinders together.
